基于Electron和Vue3桌面版图片压缩应用

一、效果展示

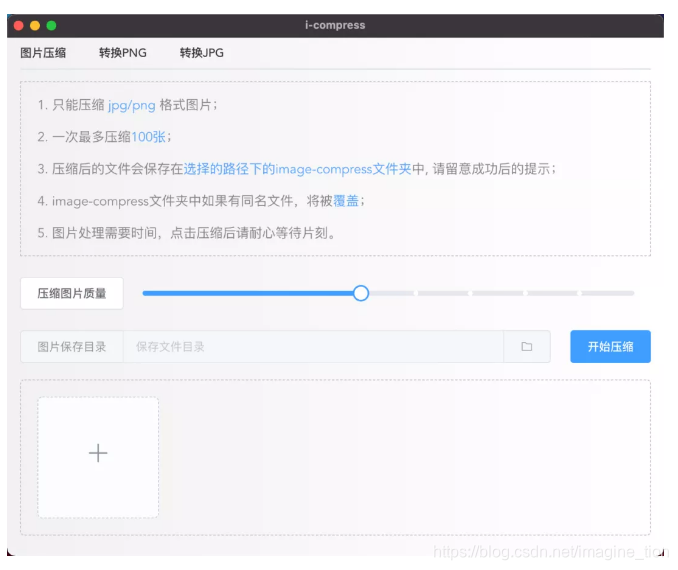

1.图片压缩

2.转换成PNG

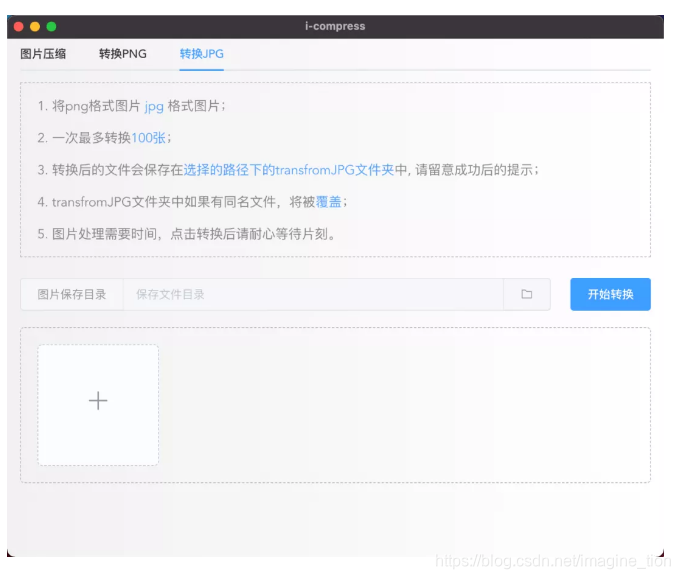

3.转换成JPG

二、Electron

electron可以使用 JavaScript，HTML 和 CSS 构建跨平台的桌面应用程序，我们熟悉的Visual Studio Code也是通常electron构建的

electron 核心分为 主进程和渲染进程：

• 渲染进程负责页面展示
• 主进程负责与系统交互

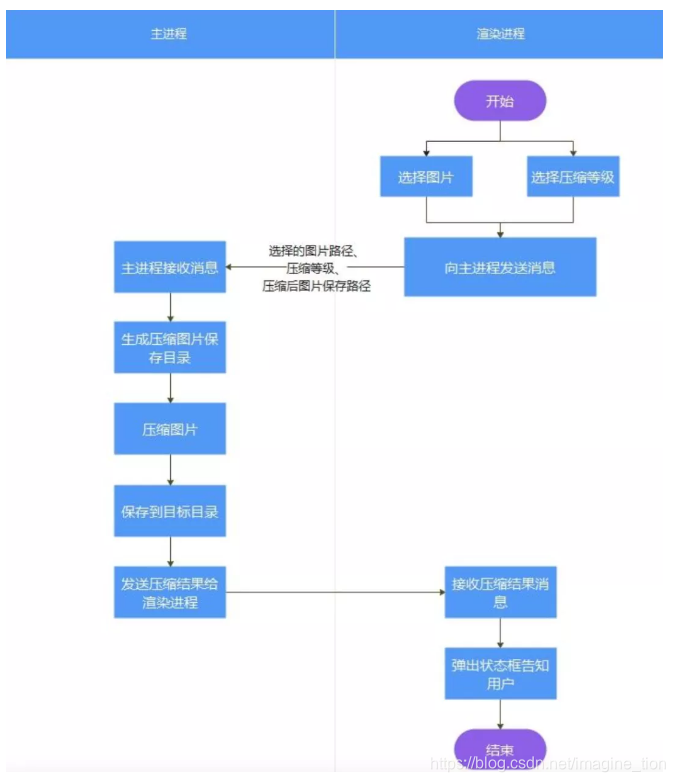

对于图片压缩功能的实现，用户在页面批量选择图片，发送图片路径给主进程，主进程压缩图片并将图片保存在指定目录，将压缩成功或者失败的状态返回给渲染进程，页面提示成功或失败：

三、Vue3

渐进式 JavaScript 框架

四、实现教程

1.创建项目（已安装node.js与VueCLI）

vue create <项目名称>

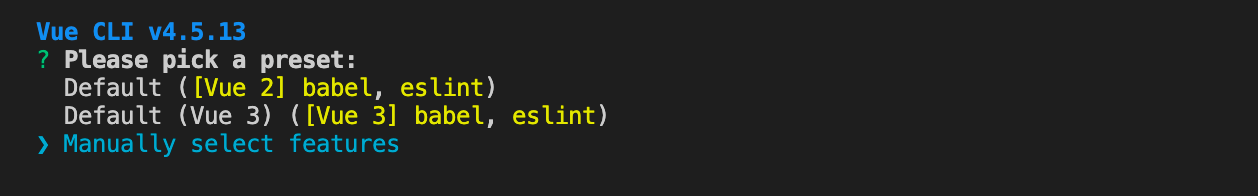

• 选择手动配置

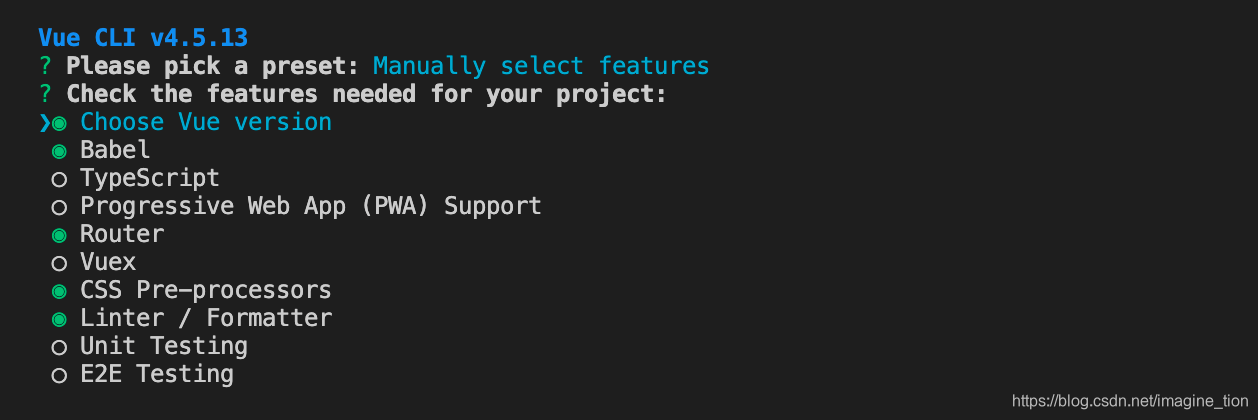

• 通过空格键选择以下绿色选项

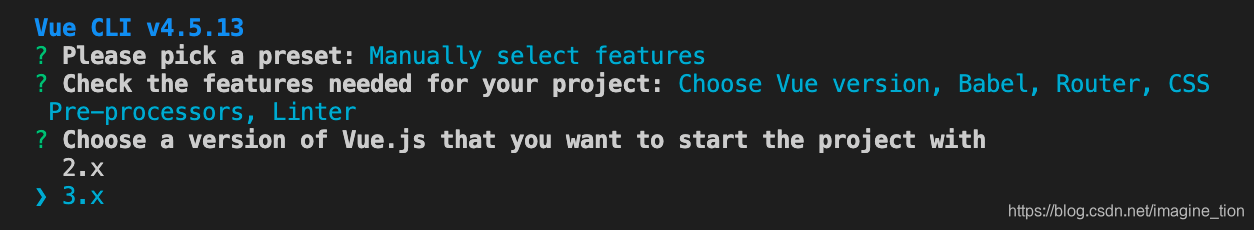

• 选择Vue3

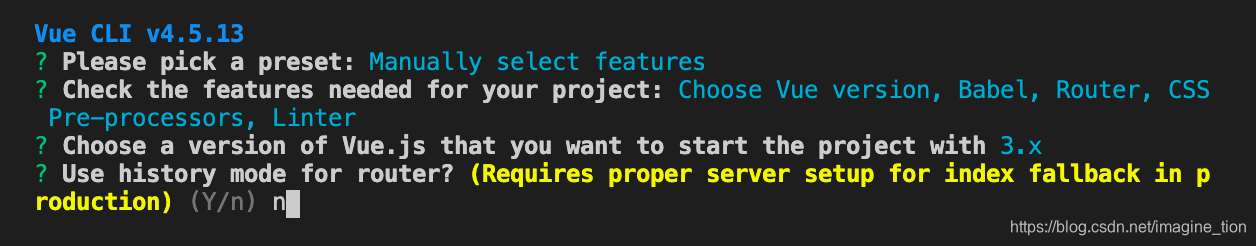

• vue-router的模式选择

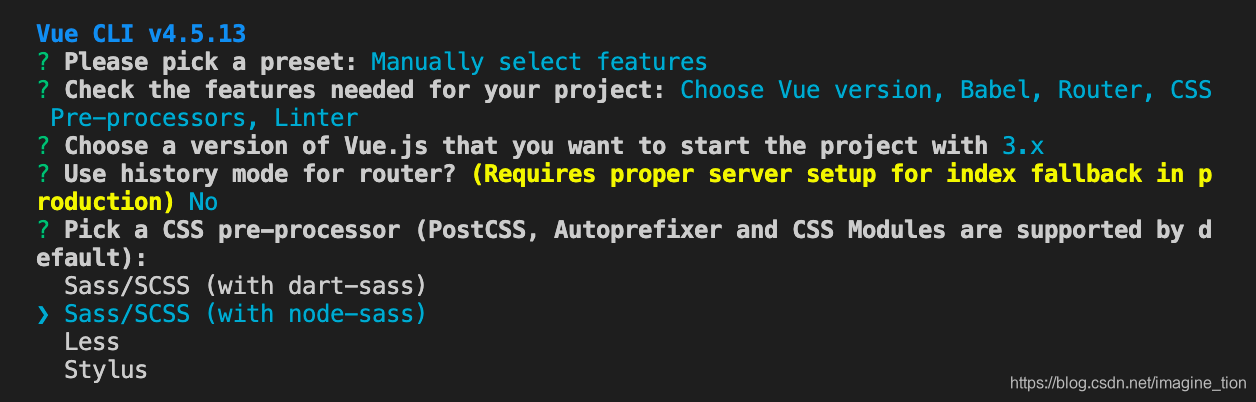

• css预处理器选择

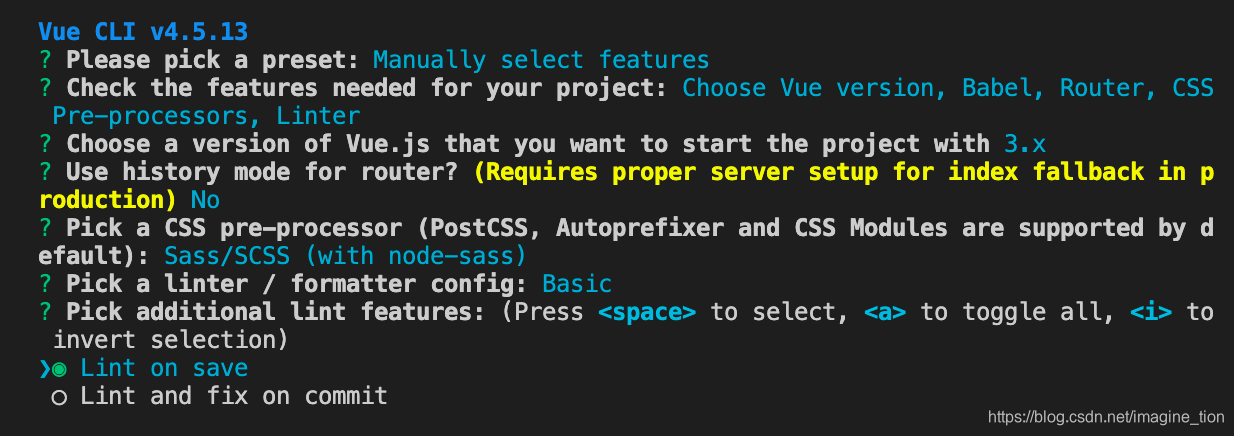

• 代码规范设置

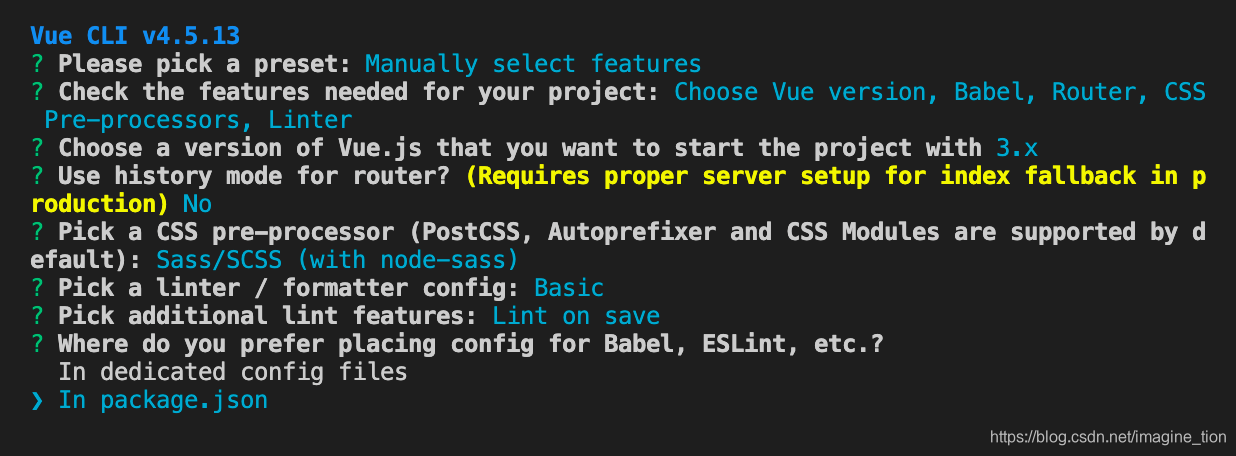

• 配置文件

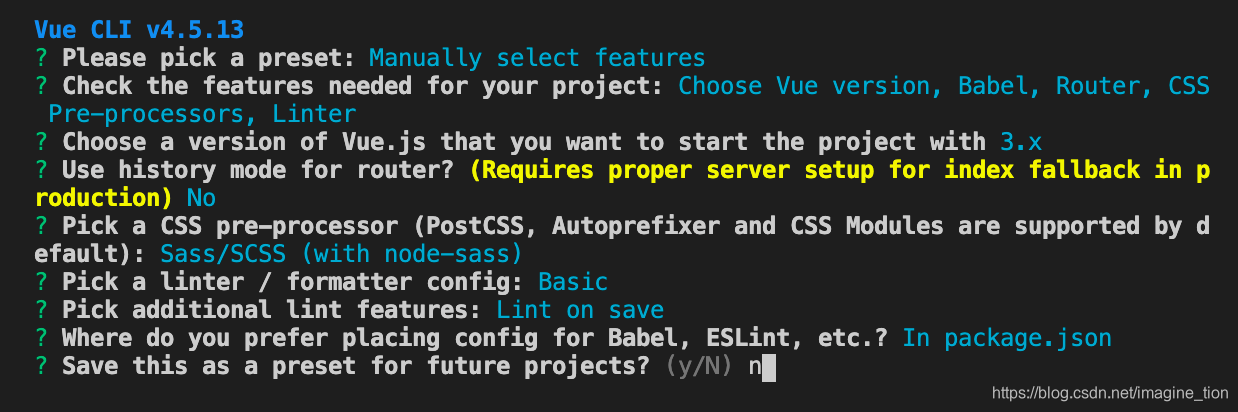

• 是否保存这样的配置作为预设配置：no

• 等待项目创建完成

2.安装依赖

• 安装 vue-cli-plugin-electron-builder

cd <项目目录>

vue add electron-builder

• npm install element-plus --save

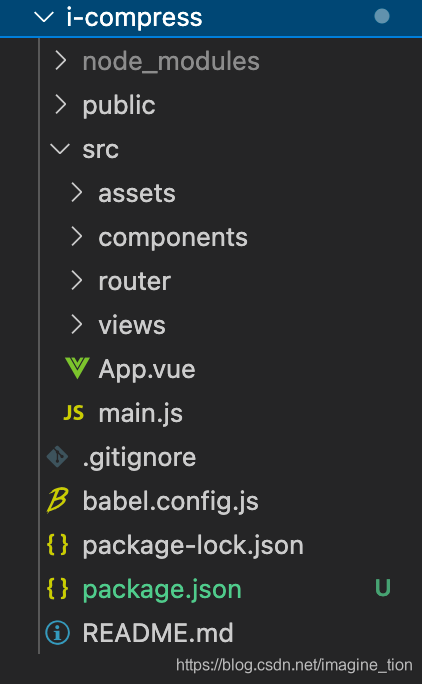

• 初始项目目录

• 运行项目

npm run electron:serve

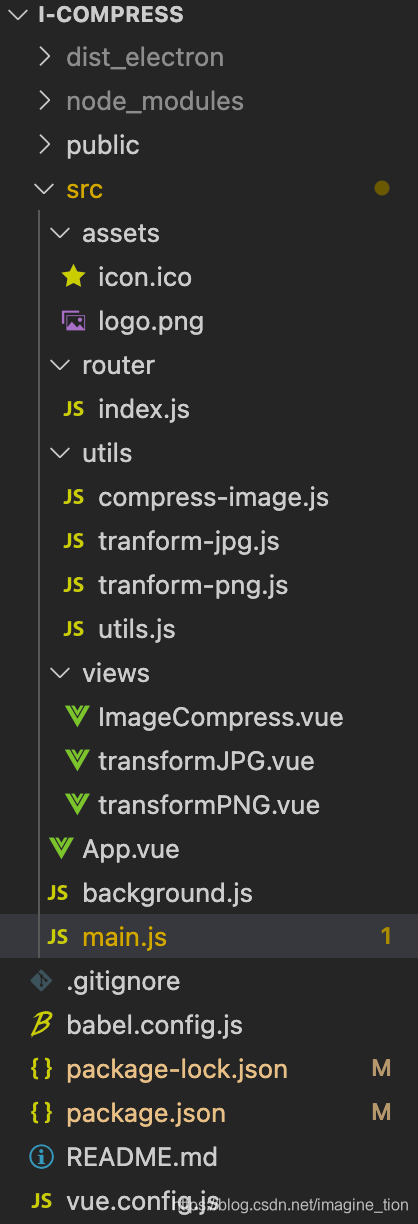

• 项目目录整理

  初始化的项目中已经有一些页面了，但是我们并不需要，下面我们精简下项目目录：

3.主进程

在main.js 中引入element-plus

// main.js

import { createApp } from 'vue'

import App from './App.vue'

import router from './router'

import ElementPlus from 'element-plus';

import 'element-plus/lib/theme-chalk/index.css';

createApp(App).use(router).use(ElementPlus).mount('#app')

编写路由：router/index.js

// router/index.js

import { createRouter, createWebHashHistory } from 'vue-router'

import ImageCompress from '../views/ImageCompress.vue'

import transformPNG from '../views/transformPNG.vue'

import transformJPG from '../views/transformJPG.vue'

const routes = [

{

path: '/',

name: 'index',

redirect: '/first'

},

{

path: '/first',

name: 'ImageCompress',

component: ImageCompress

},

{

path: '/second',

name: 'transformPNG',

component: transformPNG

},

{

path: '/third',

name: 'transformJPG',

component: transformJPG

},

]

const router = createRouter({

history: createWebHashHistory(),

routes

})

export default router

编写background.js，electron 中ipcmain(主进程)、ipcrenderer（渲染进程）负责主进程和渲染进程之间的通信

'use strict'

import { app, protocol, BrowserWindow, ipcMain, Menu } from 'electron'

import { createProtocol } from 'vue-cli-plugin-electron-builder/lib'

import installExtension, { VUEJS_DEVTOOLS } from 'electron-devtools-installer'

import imageCompress from './utils/compress-image'

import transformPNG from './utils/tranform-png'

import transformJPG from './utils/tranform-jpg'

const isDevelopment = process.env.NODE_ENV !== 'production'

// Scheme must be registered before the app is ready

protocol.registerSchemesAsPrivileged([

{ scheme: 'app', privileges: { secure: true, standard: true } }

])

let BrowerWindow = null

async function createWindow() {

// Create the browser window.

Menu.setApplicationMenu(null) // 隐藏窗口菜单项

BrowerWindow = new BrowserWindow({

width: 800,

height: 660,

webPreferences: {

nodeIntegration: true,// 允许页面集成node模块

contextIsolation: false,

webSecurity: false,// 取消跨域限制

}

})

if (process.env.WEBPACK_DEV_SERVER_URL) {

// Load the url of the dev server if in development mode

await BrowerWindow.loadURL(process.env.WEBPACK_DEV_SERVER_URL)

if (!process.env.IS_TEST) BrowerWindow.webContents.openDevTools()

} else {

createProtocol('app')

// Load the index.html when not in development

BrowerWindow.loadURL('app://./index.html')

}

}

// Quit when all windows are closed.

app.on('window-all-closed', () => {

// On macOS it is common for applications and their menu bar

// to stay active until the user quits explicitly with Cmd + Q

if (process.platform !== 'darwin') {

app.quit()

}

})

app.on('activate', () => {

// On macOS it's common to re-create a window in the app when the

// dock icon is clicked and there are no other windows open.

if (BrowserWindow.getAllWindows().length === 0) createWindow()

})

// This method will be called when Electron has finished

// initialization and is ready to create browser windows.

// Some APIs can only be used after this event occurs.

app.on('ready', async () => {

if (isDevelopment && !process.env.IS_TEST) {

// Install Vue Devtools

try {

await installExtension(VUEJS_DEVTOOLS)

} catch (e) {

console.error('Vue Devtools failed to install:', e.toString())

}

}

createWindow()

})

// Exit cleanly on request from parent process in development mode.

if (isDevelopment) {

if (process.platform === 'win32') {

process.on('message', (data) => {

if (data === 'graceful-exit') {

app.quit()

}

})

} else {

process.on('SIGTERM', () => {

app.quit()

})

}

}

// 图片压缩：接收 页面发来的消息，arg 为消息参数

ipcMain.on('compress-image', async (event, arg) => {

const status = await imageCompress(arg)

console.log('compress-status')

BrowerWindow.webContents.send('compress-status', status)

})

// 图片转成png：接收 页面发来的消息，arg 为消息参数

ipcMain.on('transform-png', async (event, arg) => {

const status = await transformPNG(arg)

console.log('png-status')

BrowerWindow.webContents.send('png-status', status)

})

// 图片转成jpg：接收 页面发来的消息，arg 为消息参数

ipcMain.on('transform-jpg', async (event, arg) => {

const status = await transformJPG(arg)

console.log('jpg-status')

BrowerWindow.webContents.send('jpg-status', status)

})

编写utils/utils.js，该方法用于创建文件存放目录

import fs from 'fs'

// 创建目录，返回创建目录的结果

const mkdir = (path) => {

return new Promise((resolve, reject) => {

if (fs.existsSync( path )) {

resolve(true)

return

}

fs.mkdir(path, (error) => {

if (error) {

reject(false)

} else {

resolve(true)

}

})

})

}

export {

mkdir,

}

编写utils/compress-image.js，该方法用于图片压缩

import { nativeImage } from 'electron'

import path from 'path'

import fs from 'fs'

import { mkdir } from './utils'

const imageCompress = (input, quality) => {

quality = quality || 50

const image = nativeImage.createFromPath(input);

const res = image.resize({

// 图片压缩质量，可选值：better || good || best

quality: 'best'

})

console.log(res)

// const imageData = res.toPNG()

// jpg 压缩 图片质量设置

const imageData = res.toJPEG(quality)

return imageData;

}

export default async (options) => {

// 创建保存图片目录，失败的话退出

const createDir = await mkdir(options.targetDir)

if (!createDir) return {

success: false,

msg: '创建图片保存目录失败！'

}

try {

options.fileList.map((item) => {

const dirParse = path.parse(item)

const data = imageCompress(item, options.quality)

const targetDir = `${options.targetDir}${path.sep}${dirParse.name}${dirParse.ext}`

fs.writeFileSync(targetDir,data)

})

return {

success: true,

msg: `图片压缩成功，保存在 ${options.targetDir} 目录中`

}

} catch (err) {

console.log(err, 'err')

return {

success: false,

msg: `图片压缩失败!`,

reason: err

}

}

}

编写utils/tranform-jpg.js，该方法用于将图片转换成jpg格式

import { nativeImage } from 'electron'

import path from 'path'

import fs from 'fs'

import { mkdir } from './utils'

const imageCompress = (input, quality) => {

quality = quality || 50

const image = nativeImage.createFromPath(input);

const imageData = image.toJPEG(quality)

return imageData;

}

export default async (options) => {

// 创建保存图片目录，失败的话退出

const createDir = await mkdir(options.targetDir)

if (!createDir) return {

success: false,

msg: '创建图片保存目录失败！'

}

try {

options.fileList.map((item) => {

const dirParse = path.parse(item)

const data = imageCompress(item, options.quality)

const targetDir = `${options.targetDir}${path.sep}${dirParse.name}.jpg`

fs.writeFileSync(targetDir,data)

})

return {

success: true,

msg: `图片转换成功，保存在 ${options.targetDir} 目录中`

}

} catch (err) {

console.log(err, 'err')

return {

success: false,

msg: `图片转换失败!`,

reason: err

}

}

}

编写utils/tranform-png.js，该方法用于将图片转换成png格式

import { nativeImage } from 'electron'

import path from 'path'

import fs from 'fs'

import { mkdir } from './utils'

const transformPNG = (input, quality) => {

quality = quality || 50

const image = nativeImage.createFromPath(input);

const imageData = image.toPNG()

return imageData;

}

export default async (options) => {

// 创建保存图片目录，失败的话退出

const createDir = await mkdir(options.targetDir)

if (!createDir) return {

success: false,

msg: '创建图片保存目录失败！'

}

try {

options.fileList.map((item) => {

const dirParse = path.parse(item)

const data = transformPNG(item, options.quality)

const targetDir = `${options.targetDir}${path.sep}${dirParse.name}.png`

fs.writeFileSync(targetDir,data)

})

return {

success: true,

msg: `图片转换成功，保存在 ${options.targetDir} 目录中`

}

} catch (err) {

console.log(err, 'err')

return {

success: false,

msg: `图片转换失败!`,

reason: err

}

}

}

4.渲染进程

现在我们来写应用界面和逻辑，app.vue文件如下

<template>

<el-tabs v-model="activeName" @tab-click="handleClick" class="tabs">

<el-tab-pane label="图片压缩" name="first"></el-tab-pane>

<el-tab-pane label="转换PNG" name="second"></el-tab-pane>

<el-tab-pane label="转换JPG" name="third"></el-tab-pane>

</el-tabs>

<router-view/>

</template>

<style lang="scss">

body{

margin: 0;

padding: 0;

background: linear-gradient(to right, #f1f1f1, #ffffff);

}

#app {

font-family: Avenir, Helvetica, Arial, sans-serif;

-webkit-font-smoothing: antialiased;

-moz-osx-font-smoothing: grayscale;

// text-align: center;

color: #868585;

.tabs{

width: 96%;

margin: 0 auto;

}

}

</style>

<script>

import { ref } from 'vue'

import { useRouter } from "vue-router";

export default {

setup(){

const activeName = ref(null);

const router = useRouter();

const handleClick = () =>{

let path = '/'+activeName.value

router.push(path)

}

return {

activeName,

handleClick

}

}

}

</script>

在imageCompress.vue中，界面组件使用element-plus: 压缩质量选择用滑块组件el-slider，图片选择用el-upload组件。

页面逻辑的编写，用户选择文件、压缩质量后，生成一个文件保存目录，并将文件的系统路径保存在数组中，通过ipcRenderer 传递给主进程，交由主进程中去进行图片处理，主进程处理完成（或失败）后，并且在页面响应由主进程返回的处理状态：

• ipcRenderer.send(): 向主进程（ipcMain）发送消息
• ipcRenderer.on(): 响应主进程（ipcMain）推送过来的消息

<template>

<div class="tinypng-wrapper">

<div class="tips">

<p>1. 只能压缩 <span class="highlight">jpg/png</span> 格式图片；</p>

<p>2. 一次最多压缩<span class="highlight">100张</span>；</p>

<p>

3. 压缩后的文件会保存在<span class="highlight"

>选择的路径下的image-compress文件夹</span

>中, 请留意成功后的提示；

</p>

<p>

4. image-compress文件夹中如果有同名文件，将被<span class="highlight"

>覆盖</span

>；

</p>

<p>5. 图片处理需要时间，点击压缩后请耐心等待片刻。</p>

</div>

<div class="header">

<el-button>压缩图片质量</el-button>

<el-slider

class="slider"

v-model="quality"

:step="10"

:min="10"

show-stops

>

</el-slider>

</div>

<div class="header">

<input type="file" id="file" @change="fileChange" hidden webkitdirectory>

<el-input placeholder="保存文件目录" v-model="targetDir" disabled>

<template #prepend>图片保存目录</template>

<template #append>

<el-button icon="el-icon-folder" @click="btnChange"></el-button>

</template>

</el-input>

<el-button style="margin-left: 24px" type="primary" @click="handleSubmit"

>开始压缩</el-button

>

</div>

<div class="tinypng-content">

<el-upload

class="upload-demo"

ref="upload"

accept=".jpg,.png"

multiple

:auto-upload="false"

:limit="maxFileNum"

:file-list="fileList"

:on-exceed="handleExceed"

:on-preview="handlePictureCardPreview"

action=""

list-type="picture-card"

>

<i class="el-icon-plus"></i>

</el-upload>

<el-dialog v-model="dialogVisible">

<img width="100%" :src="dialogImageUrl" alt="">

</el-dialog>

</div>

</div>

</template>

<style lang="scss" scoped>

.tinypng-wrapper{

width: 96%;

margin: 0 auto;

.tips{

padding-left: 20px;

border: 1px dashed rgb(187, 187, 187);

.highlight{

color: rgb(84, 162, 252);

}

}

.header{

display: flex;

align-items:center;

justify-content: space-between;

margin-top: 25px;

.slider{

width: 78%;

margin-right: 20px;

}

}

.tinypng-content{

margin: 20px 0;

padding: 20px;

border: 1px dashed rgb(187, 187, 187);

border-radius: 5px;

}

}

</style>

<script>

// electron ipcRenderer -- 与electron主进程通信

const { ipcRenderer } = window.require("electron")

// path模块，处理文件路径

const PATH = window.require("path");

import { onMounted, ref, onBeforeUnmount } from "vue";

import { ElMessage, ElNotification, ElLoading } from "element-plus";

// loading 实例

let loadingInstance = null;

export default {

setup() {

// 文件列表

const fileList = ref([]);

// 批量处理文件数量限制

const maxFileNum = ref(100);

// 图片选择组件

const upload = ref(null);

// 图片保存的目标目录

const targetDir = ref(null);

// 图片压缩质量

const quality = ref(50);

// 弹窗显示控制

const dialogVisible = ref(false);

// 弹窗图片链接

const dialogImageUrl = ref(null);

// 图片压缩质量选项

const marks = ref({

10: "10",

20: "20",

30: "30",

40: "40",

50: "50",

60: "60",

70: "70",

80: "80",

90: "90",

100: "100"

});

// 文件选择数量超出设定值时，弹出警告框

const handleExceed = (files, fileList) => {

ElMessage.warning({

message: `最多只能选择 ${ maxFileNum.value }个文件哦，当前选择了 ${files.length + fileList.length} 个文件`,

type: "warning"

});

};

// 确认按钮，开始压缩

const handleSubmit = () => {

const uploadFiles = upload.value.uploadFiles;

// 验证是否选择了图片，没有选择弹出警告信息

if (!uploadFiles.length) {

ElNotification({

title: "警告",

message: "请先选择文件！",

type: "warning"

});

return false;

}

// 验证是否选择了路径，没有选择弹出警告信息

if (!targetDir.value) {

ElNotification({

title: "警告",

message: "请先选择文件存放路径！",

type: "warning"

});

return false;

}

const dir = PATH.normalize(targetDir.value);

// 遍历出图片文件的路径

const fileList = [];

uploadFiles.map(item => item?.raw?.path && fileList.push(item.raw.path));

// 消息参数

const data = {

fileList,

quality: quality.value,

targetDir: dir

};

// 显示loading

loadingInstance = ElLoading.service( {

background: "rgba(255,255,255,0.5)"

});

// 向主进程发送消息，消息中有：压缩质量、压缩保存目录、压缩文件的地址（数组）

ipcRenderer.send("compress-image", data);

};

// 选择文档路径

const btnChange = () => {

var file = document.getElementById('file')

file.click()

};

// 文件路径改变时

const fileChange = () => {

try {

const fu = document.getElementById('file')

if (fu == null) return

targetDir.value = PATH.parse(fu.files[0].path).dir+ `${PATH.sep}image-compress`

console.log(targetDir.value)

} catch (error) {

console.debug('choice file err:', error)

}

};

const handlePictureCardPreview = file => {

console.log('file.url',file.url)

ElNotification({

title: "通知",

message: "预览图片功能暂不支持"

});

}

onBeforeUnmount(() => {

loadingInstance = null;

});

// mounted 生命周期

onMounted(() => {

// 响应主进程推送的图片压缩状态，并弹框显示

ipcRenderer.on("compress-status", (event, arg) => {

ElNotification({

title: arg.success ? "成功" : "失败",

message: arg.success ? arg.msg : arg.reason,

type: arg.success ? "success" : "error"

});

loadingInstance.close();

if (arg.success) {

upload.value.uploadFiles = [];

fileList.value = [];

quality.value = 50;

// targetDir.value = null;

}

});

});

return {

targetDir,

upload,

quality,

marks,

fileList,

maxFileNum,

handleExceed,

handleSubmit,

btnChange,

fileChange,

handlePictureCardPreview,

dialogVisible,

dialogImageUrl

};

}

};

</script>

transfromJPG.vue：略

transfromPNG.vue：略

5.项目配置

应用打包后，安装程序和图标配置：在项目根目录下创建vue.config.js文件（目前为windows下的应用打包配置）

module.exports = {

pluginOptions: {

electronBuilder: {

builderOptions: {

"appId": "com.example.app",

"productName": "i-compress",//项目名，也是生成的安装文件名，即aDemo.exe

"copyright": "Copyright © 2021",//版权信息

"directories": {

"output": "build"//输出文件路径

},

"win": {//win相关配置

"icon": "./src/assets/icon.ico",//图标，当前图标在根目录下，注意这里有两个坑

"target": [

{

"target": "nsis",//利用nsis制作安装程序

"arch": [

"x64",//64位

]

}

]

},

"nsis": {

"oneClick": false, // 是否一键安装

"allowElevation": true, // 允许请求提升。 如果为false，则用户必须使用提升的权限重新启动安装程序。

"allowToChangeInstallationDirectory": true, // 允许修改安装目录

"installerIcon": "./src/assets/icon.ico",// 安装图标

"uninstallerIcon": "./src/assets/icon.ico",//卸载图标

"installerHeaderIcon": "./src/assets/icon.ico", // 安装时头部图标

"createDesktopShortcut": true, // 创建桌面图标

"createStartMenuShortcut": true,// 创建开始菜单图标

"shortcutName": "Icompress", // 桌面显示应用名称

},

}

},

},

}

6.应用打包

npm run electron:build

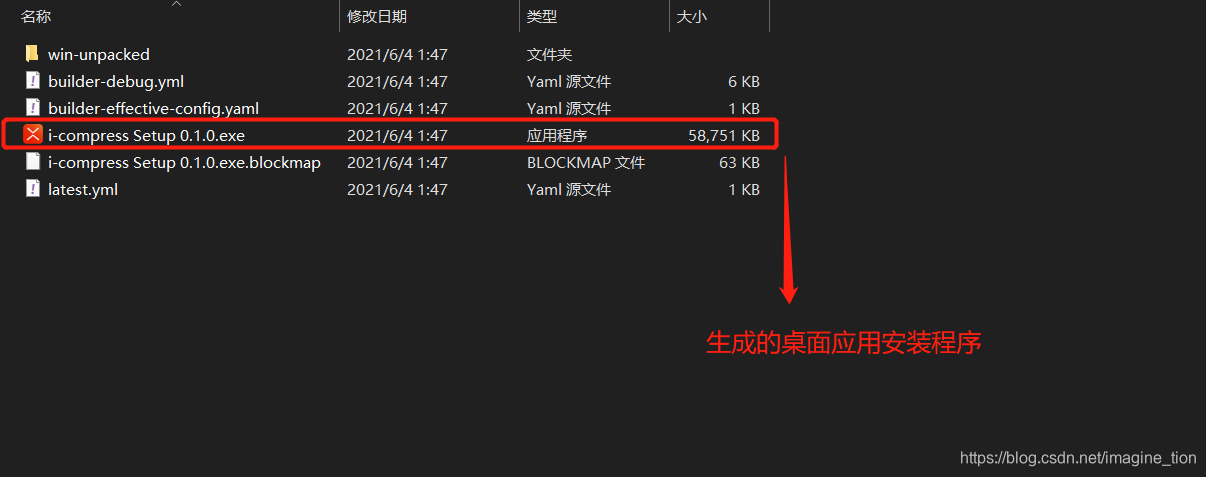

运行上面命令行后，会在项目根目录下生成build文件夹，内容如下（贪图方便，应用图标笔者借用xmind的图标作为应用图标）

安装后，应用桌面效果

五、应用下载与源码链接

应用下载链接：链接：https://pan.baidu.com/s/1iWFFo0GSPPYpdR87DZdMtQ 提取码：kjhx

项目源码链接：https://github.com/innagine/i-compress （希望可以给个star）
